*Kaitselüliti EP06K, 1B 25A 6kA, 16/25mm²| 2..3.5Nm, MaxGE Kood:
EP06K-1B-25
Tootja
:
|
Saadavus:
Laos
|
Kaal:
0.1083 kg/tk
|
Maht:
0.0002 m3/tk
|
Hulgipakendi kogus:
12tk
|
|
|
|
MCB 1B 25A 6kA
Functions:
-
Protection of the electrical circuits from overload or short circuits of the outer circuit
-
It can be used as a device for commutation and control of electrical circuits
-
In combination with auxiliary devices it allows remote control,
commutation or indication of the protected circuit
-
For mounting in industrial buildings with high contamination level of the electric systems
-
For mounting at a distance from the transformer post from 150 to 850 m
-
Allows protection of consumers generating short circuit currents up to 6000 A
|
|
Technical data:
|
Standard
|
Confirming to IEC/EN60898
|
|
Rated voltage:
|
230/400V; 50/60Hz
|
|
Breaking capacity (cycle O-CO) in accordance with standard:
|
EN 60 898-1: 6000A
|
|
Rated breaking capacity:
|
Ics= 75% Icu
|
|
Isolating voltage:
|
≥2000V
|
|
Electrical wear resistance (number of cycles):
|
8000
|
|
Mechanical (number of cycles):
|
50000
|
|
Class of current limiting:
|
3
|
|
IP code:
|
IP>20
|
|

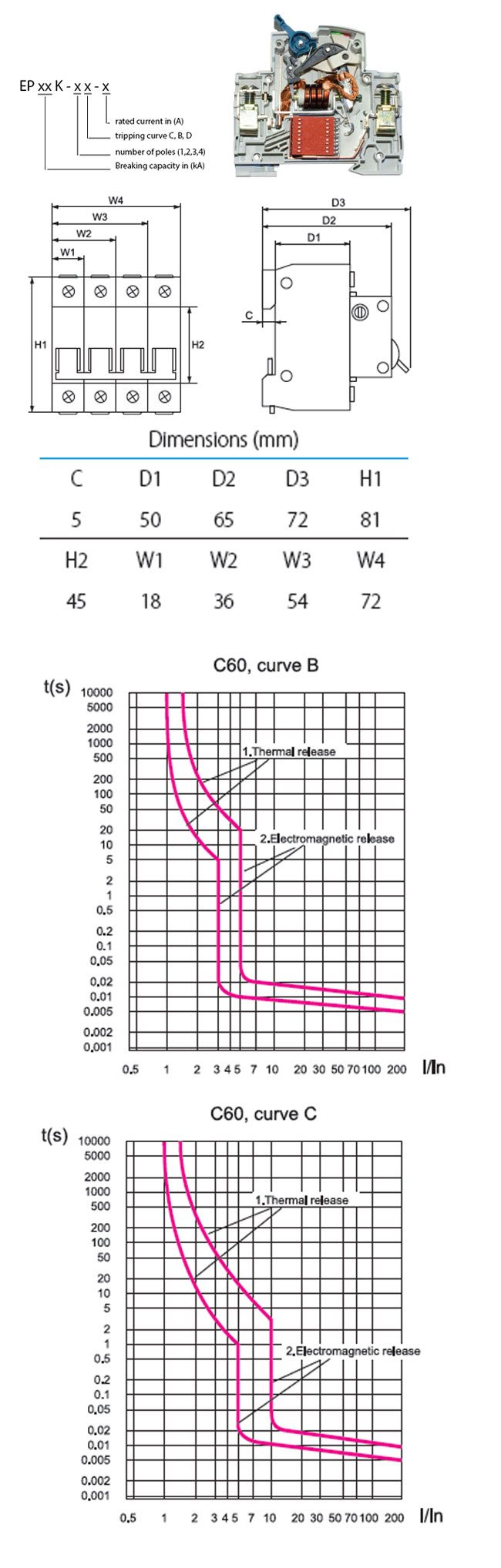

Tripping curve:
|
-
B the maximum current release breaks between 3 and 5 In; used to protect long circuits and generators
-
C the maximum current release breaks between 5 and 10 In; used to protect main power supply cables and conventional consumers
|
|
Joining terminal:
|
Combined screw clamp made of 1.5 cold extruded Q235-A material with additional coating
|
|
Plastic box
|
not keeping the burning material nylon PA66, UV rays wear resistance
|
|
Status indicator:
|
|
|
Box permitivity strength:
|
>18MV/m
|
|
Abnormal heating wear resistance and fire of the outer parts:
|
960°C / 3s
|
|
Heat resistance of internal non-electrical components:
|
850°? / 10 s
|
|
Maximum current release containing:
|
-
copper coil - composition: pure copper T2 type
-
composition: pure copper T2 type
-
welding effort: <150 000 N/mm
-
bimetal plate composition: 5J158 to TB180 depending on the current
-
thickness: 0.6mm (up to 40A) and 0.8mm (up to 63A)
-
magnetic core composition: coldly drawplated metal wire (1Gr18Ni9)
-
thickness: 1.15 to 2.24μm
-
drawing effort: from 200 to 400N/mm
-
contact head of the movable contact composition: silver graphite CAg(5)
-
dimension 3x3x0.8 (up to 40A) and 4x4x0.8 (up to 63A)
-
static contact composition: pure copper T2Y2
-
composition of the contact head: silver graphite CAg(5)
|
|
Power supply (conducting):
|
|
-
power supply busbar 1P63, 2P63, 3P63
-
rigid conductors up to 25 mm
-
flexible conductors up to 16 mm
|
|
Tightening moment:
|
1.33Nm
|
Mounting:
|
Standard
|
-
vertical
-
DIN-rail
-
for mounting in housing or industrial environment without serious interference
-
ambient temperature: -5°C to + 40°C±2° C
|
|
Detailed data:
|
|
|
|
File description
|
File type
|
Download link
|
|
Declaration of Conformity
|
.PDF
|
Download link
|
|
|
|
|
